1 -Way TMJPD561188AG1A5DB6 Series Ethernet ConnectorFemale, Through Hole, Cat5e, Shielded Shield Right Angle 1 Right AngleTMJPD561188AG1A5DB6
TMJPD561188AG1A5DB6 - 1 -Way TMJPD561188AG1A5DB6 Series Ethernet ConnectorFemale, Through Hole, Cat5e, Shielded Shield Right Angle 1 Right Angle
305-17-060
TMJPD561188AG1A5DB6
Manufacturer:Taoglas
New to us

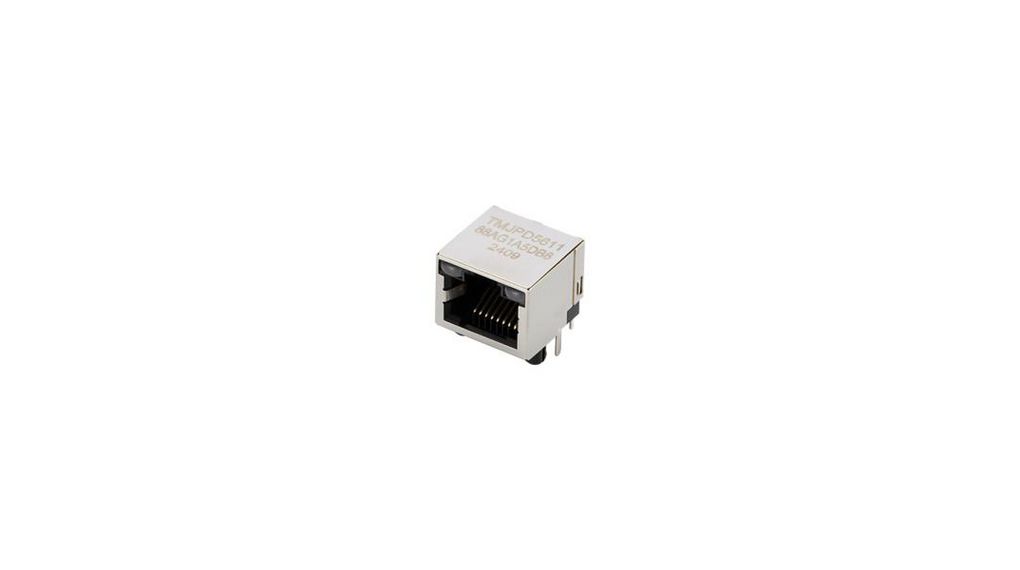

Image is for illustrative purposes only. Please refer to product description.
TMJPD561188AG1A5DB6 - 1 -Way TMJPD561188AG1A5DB6 Series Ethernet ConnectorFemale, Through Hole, Cat5e, Shielded Shield Right Angle 1 Right Angle
305-17-060
TMJPD561188AG1A5DB6
Manufacturer:Taoglas
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Connector Gender: Female Connector Type: Ethernet Contact Material: Phosphor Bronze Contact Plating: Gold Plated Depth: 15.75 mm Ethernet Connector Type: RJ45 Hazardous Area Certification: No LAN Category: Cat5e LED: Yes Magnetic: No Maximum Operating Temperature: 85 °C Minimum Operating Temperature: -40 °C Mount Type: Through Hole Number of Ports: 1 Number of Ways: 1 Orientation: Right Angle Product Type: Ethernet Connector Series: TMJPD561188AG1A5DB6 Shield Type: Shielded Standards/Approvals: UL 94 V-0 Termination Type: Through Hole Width: 16.5 mm
Previous Article Number
708316
Additional information
Country of origin Taiwan (TW)
Manufacturer Taoglas
Gross weight (incl. package) 9 Gram
Dimensions (incl. package) 77 x 50 x 16 MM
Customs number 8536.6953
UNSPSC (v5.03) 39121402
