SICK Threaded Barrel Proximity Sensor, M30 x 1.53.4 mPNP/NPN30 V PNP-NPN 4Hz 30V IP67 / IP656068450
6068450 - SICK Threaded Barrel Proximity Sensor, M30 x 1.53.4 mPNP/NPN30 V PNP-NPN 4Hz 30V IP67 / IP65
305-21-543
6068450
Manufacturer:Sick
New to us

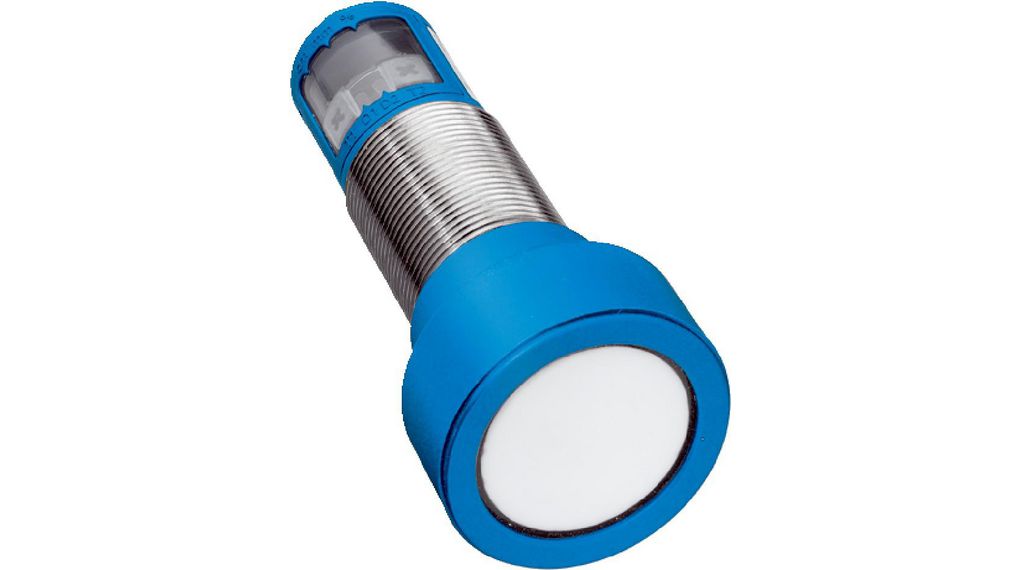

Image is for illustrative purposes only. Please refer to product description.
6068450 - SICK Threaded Barrel Proximity Sensor, M30 x 1.53.4 mPNP/NPN30 V PNP-NPN 4Hz 30V IP67 / IP65
305-21-543
6068450
Manufacturer:Sick
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Body Style: Threaded Barrel Depth: 47.5 mm Housing Material: Metal IP Rating: IP67|IP65 Interface Type: IO-Link Length: 102 mm Maximum DC Voltage: 30 V Maximum Detection: 3.4 m Maximum Operating Temperature: 70 °C Maximum Supply Voltage: 30 V Maximum Switching Frequency: 4 Hz Minimum Operating Temperature: -25 °C Mount Type: Non-Flush Output Type: PNP/NPN Product Type: Proximity Sensor Response Time: 180 ms Series: UM30 Standards/Approvals: cULus|EAC|CE Switching Current: 100 mA Terminal Type: 5-Pin M12 Thread Size: M30 x 1.5 Width: 47.5 mm
Previous Article Number
712748
Additional information
Country of origin Germany (DE)
Manufacturer Sick
Gross weight (incl. package) 250 Gram
Dimensions (incl. package) 153 x 51 x 47 MM
Customs number 8536.5019
UNSPSC (v5.03) 41111943
