SDH 15 Way Straight Screw D-Sub ConnectorMale, with Jack Screw, Male, Solder CupSDH15P
SDH15P - SDH 15 Way Straight Screw D-Sub ConnectorMale, with Jack Screw, Male, Solder Cup
305-18-651
SDH15P
Manufacturer:L-Com
New to us

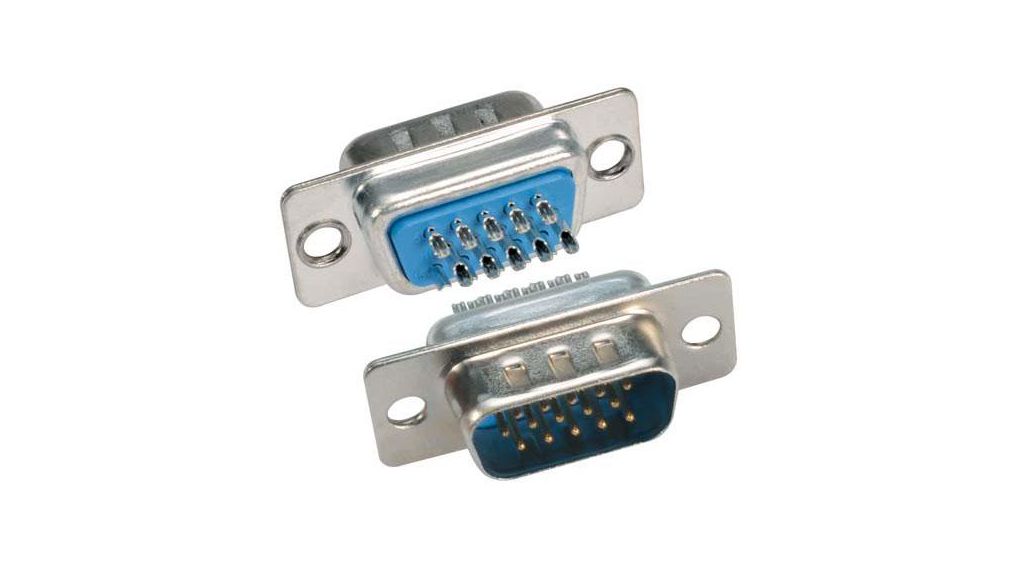

Image is for illustrative purposes only. Please refer to product description.
SDH15P - SDH 15 Way Straight Screw D-Sub ConnectorMale, with Jack Screw, Male, Solder Cup
305-18-651
SDH15P
Manufacturer:L-Com
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Article Information
Connector Gender: Male Connector Type D: D-Sub Contact Gender: Male Contact Material: Brass Contact Plating: Gold Flash Current: 1 A D-Sub Shell Size: 1 Housing Material: Steel Maximum Operating Temperature: 105 °C Minimum Operating Temperature: -55 °C Mount Type: Screw Mounting Hardware: Jack Screw Number of Contacts: 15 Orientation: Straight Pitch: 2.3 mm Product Type: D-Sub Connector Series: SDH Standards/Approvals: RoHS Termination Type: Solder Cup Voltage: 500 V
Previous Article Number
709410
Additional information
Country of origin China (CN)
Manufacturer L-Com
Gross weight (incl. package) 7 Gram
Dimensions (incl. package) 150 x 100 x 10 MM
Customs number 8536.6900
UNSPSC (v5.03) 39121402
