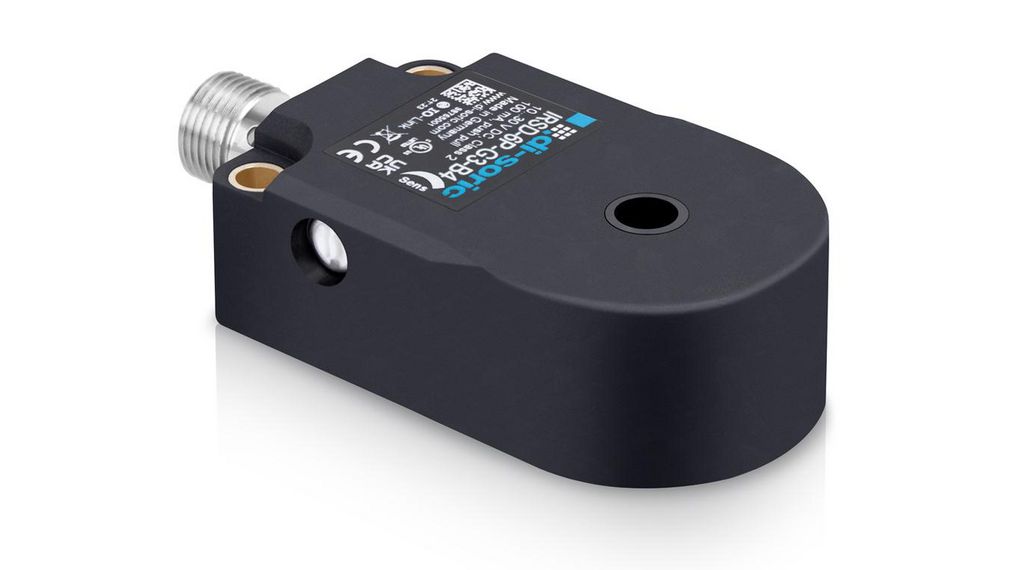

Ring Inductive Proximity Sensor, M12NPN/PNP30 V PNP-NPN 30V IP67213787
213787 - Ring Inductive Proximity Sensor, M12NPN/PNP30 V PNP-NPN 30V IP67
305-23-040
213787
Manufacturer:Di-Soric
New to us
Image is for illustrative purposes only. Please refer to product description.
213787 - Ring Inductive Proximity Sensor, M12NPN/PNP30 V PNP-NPN 30V IP67
305-23-040
213787
Manufacturer:Di-Soric
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Body Style: Ring Depth: 20 mm Housing Material: Plastic IP Rating: IP67 Length: 73.5 mm Materials Detected: Metal Maximum DC Voltage: 30 V Maximum Operating Temperature: 70 °C Maximum Supply Voltage: 30 V Minimum Operating Temperature: -25 °C Output Type: PNP/NPN Product Type: Inductive Proximity Sensor Series: IRSD Shielding: Unshielded Standards/Approvals: CE|Protection class III|UKCA|UL Switching Current: 100 mA Terminal Type: M12 Thread Size: M12 Width: 35 mm
Previous Article Number
736100
Additional information
Country of origin Germany (DE)
Manufacturer Di-Soric
Gross weight (incl. package) 50 Gram
Dimensions (incl. package) 150 x 150 x 20 MM
Customs number 8536.5000
UNSPSC (v5.03) 41111943
