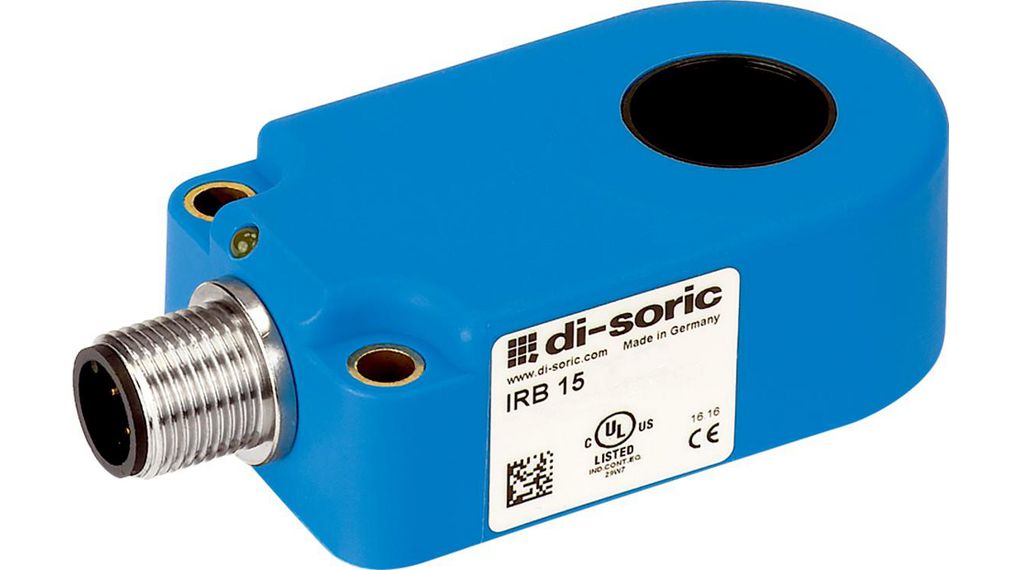

Ring Inductive Proximity Sensor, M12NPN NO35 V NPN 55Hz 35V IP67209916
209916 - Ring Inductive Proximity Sensor, M12NPN NO35 V NPN 55Hz 35V IP67
305-23-016
209916
Manufacturer:Di-Soric
New to us
Image is for illustrative purposes only. Please refer to product description.
209916 - Ring Inductive Proximity Sensor, M12NPN NO35 V NPN 55Hz 35V IP67
305-23-016
209916
Manufacturer:Di-Soric
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Body Style: Ring Depth: 20 mm Housing Material: Plastic IP Rating: IP67 Length: 73 mm Materials Detected: polyoxymethylene Maximum DC Voltage: 35 V Maximum Operating Temperature: 70 °C Maximum Supply Voltage: 35 V Maximum Switching Frequency: 55 Hz Minimum Operating Temperature: -25 °C Output Type: NPN Product Type: Inductive Proximity Sensor Standards/Approvals: operation on protective low voltage|III|UL Switching Current: 200 mA Terminal Type: M12 Thread Size: M12 Width: 35 mm
Previous Article Number
736081
Additional information
Country of origin Germany (DE)
Manufacturer Di-Soric
Gross weight (incl. package) 49 Gram
Dimensions (incl. package) 150 x 150 x 15 MM
Customs number 8536.5000
UNSPSC (v5.03) 41111943
