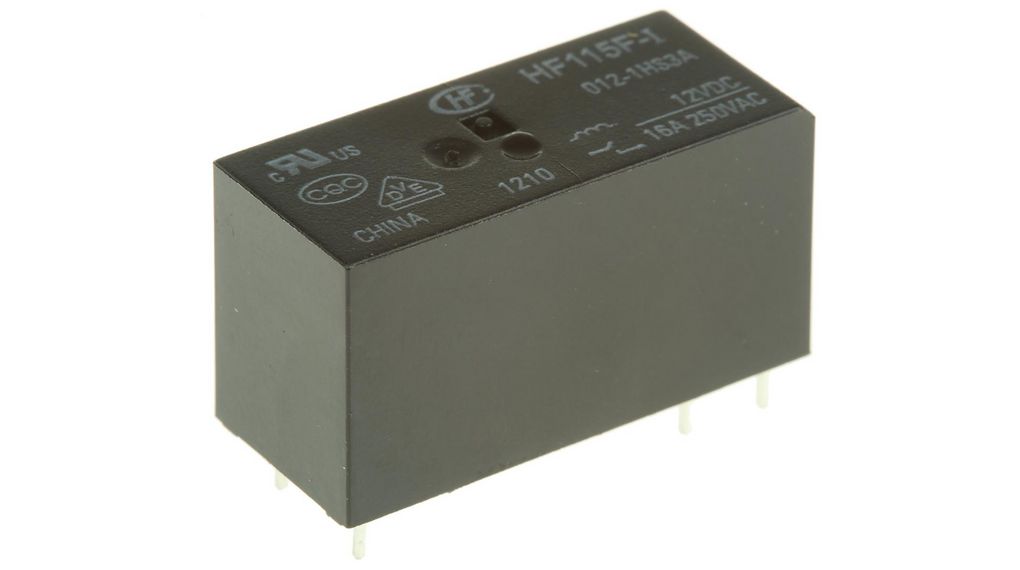

RS PRO High Inrush SPST Non-Latching Signal Relay (12V dc) A reliable miniature non latching relay with a Single Pole Single Throw (SPST) configuration designed to return to its original position after use. Designed for high inrush capability to prevent damage caused by excessive current when in operation.;This 16A signal relay is designed for easy PCB mounting and ideal for boards where space is at a premium due to its miniature and low profile design with dimensions of only 29 x 12.7 x 15.7mm.;Plastic sealed and flux proofed for excellent moisture resistance the non latching miniature relay is suitable for use in a wide range of devices and ideal for use in push button applications. Features and Benefits - Non-latching signal relay - High inrush capability of TV-5 80A @ 125V ac - Creepage of only 10mm - Miniature size of 29 x 12.7 x 15.7mm - PCB mount - Maximum switching voltage of 12Vdc - Maximum switching current of 16A - Contact rating of 250V ac - Dielectric strength of 5kV - Vibration resistance of 10Hz to 150Hz Standards and Approvals: IEC 60335-1, UL, CUL, CQC, VDE, RoHS compliant
