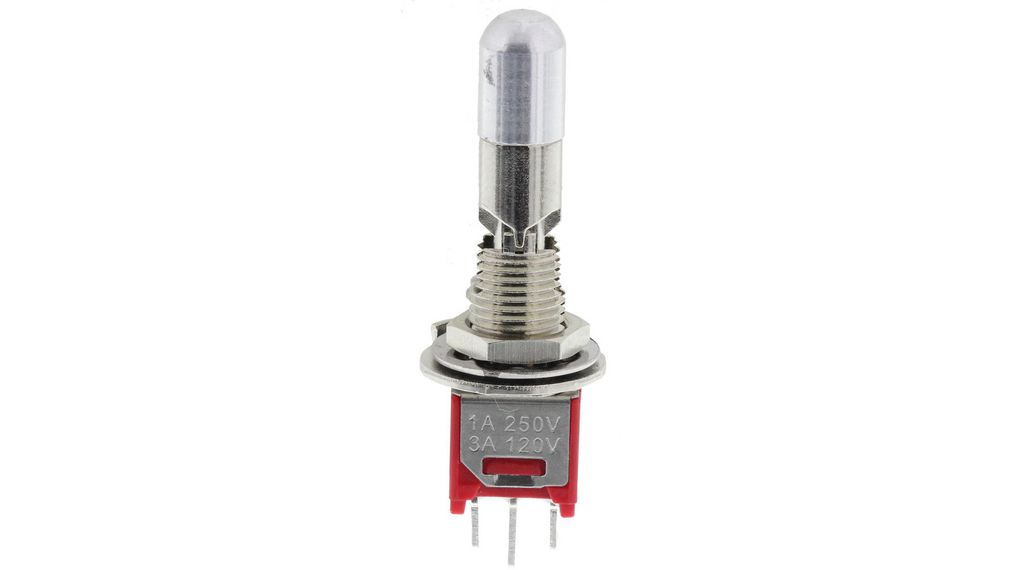

RS PRO SPDT Toggle Switch, On-Off-On, Panel Mounting This SPDT (Single Pole Double Throw) switch from RS PRO is used to control two different circuits using a single input. The unit is typically used to operate industrial machinery, relays and motors. This switch features high-quality brass contacts to ensure reliable connections. Its terminals are epoxy-sealed to prevent contamination during soldering. This ensures that you get a clean solder without the risk of breakage. The toggle on this switch locks into the selected position when actuated to prevent accidental operation. The case is made from diallyl phthalate (DAP), which meets the safety standard of UL-94-V0 by Underwriters Laboratory (UL). This means it won't burn for longer than 50 seconds in case of accidental fire. A mechanical life of 30,000 cycles ensures you can be confident of long service life. Features and Benefits - Actuator length of 16 mm - Brass actuator material - SPDT contact configuration - Contact current rating of 3 A (amps) at 120 V (volts) AC - Brass contact material - Contact resistance of 20 mOhm - Operating temperature range of -30°C to +85°C - Mechanical life of 30000 cycles - Panel mounting - RoHS (Restriction of Hazardous Substances) and lead-free standards met - On-off-on switch operation - Solder terminal type
