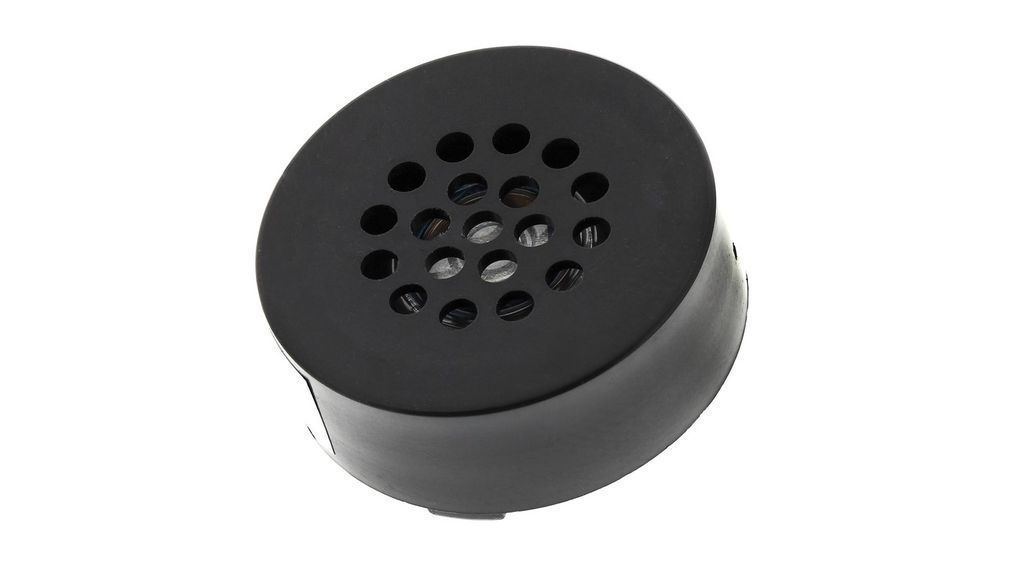

7243100 - Miniature Speaker 22.5mm 80mW 8Ohm 73dB
Image is for illustrative purposes only. Please refer to product description.
7243100 - Miniature Speaker 22.5mm 80mW 8Ohm 73dB
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
RS PRO 8 Ohm 0.08 W Miniature Speaker 22.5 mm Dia., 6 mm Lead Length, 22.5 (Dia.) x 8.5 mm Transform audio signal into sound with this miniature speaker from RS PRO. The component is compact, so you're able to install it in areas where space is at a premium. This magnetic speaker can play loud sounds of up to 73 dB (decibels), which means it's well-suited to use in noisier areas from bathroom showers to busy factories. For speedy installation, you can mount the black miniature speaker to a printed circuit board (PCB) and solder it into place. It has a hardwearing NORYL™ exterior to ensure it remains undamaged and free from dust. You'll find this versatile component in applications such as electronic musical instruments, televisions and portable audio players. Features and Benefits - Coil resistance of 8 Ohm - Mylar cone material - Dimensions of 22.5 (diameter) x 8.5 mm (height) - Lead length of 6 mm - Rated power of 0.08 W - Sound level of 73 dB - External drive tone type
