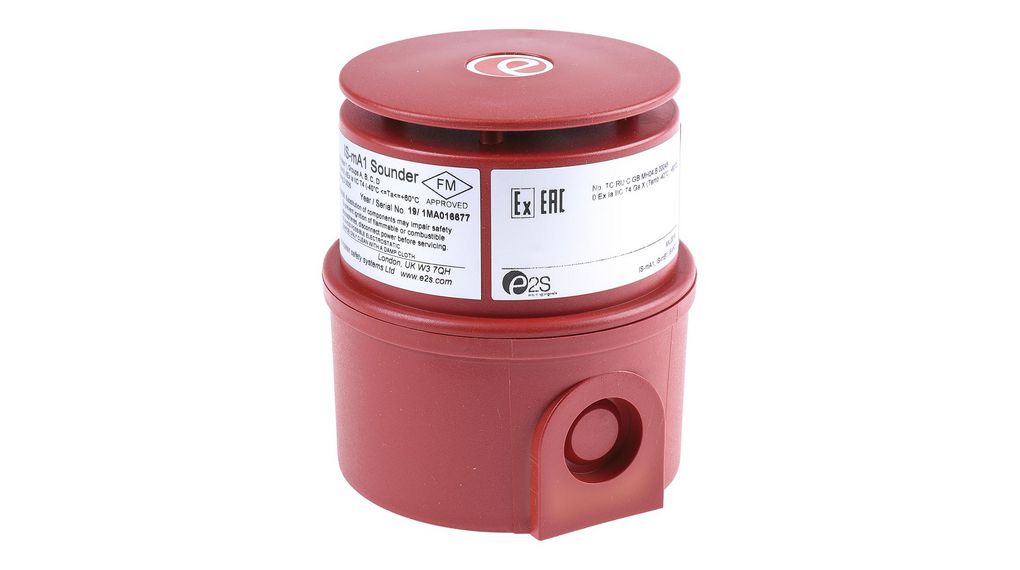

IS-mA1 Series Electronic SounderSurface, IP65, DC28 V, 49-Tone100 dB IP65IS-MA1-R
IS-MA1-R - IS-mA1 Series Electronic SounderSurface, IP65, DC28 V, 49-Tone100 dB IP65
305-22-208
IS-MA1-R
Manufacturer:e2s
New to us
Image is for illustrative purposes only. Please refer to product description.
IS-MA1-R - IS-mA1 Series Electronic SounderSurface, IP65, DC28 V, 49-Tone100 dB IP65
305-22-208
IS-MA1-R
Manufacturer:e2s
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Article Information
Base Length: 89 mm Current Consumption: 25 mA Current Type: DC Diameter: 89 mm Hazardous Area Certification: ATEX Housing Colour: Red Housing Material: ABS IP Rating: IP65 Maximum Operating Temperature: 60 °C Maximum Sound Level: 100 dB Maximum Supply Voltage: 28 V Minimum Operating Temperature: -40 °C Minimum Sound Level: 90 dB Mount Type: Surface Number of Tones: 49 Product Type: Electronic Sounder Series: IS-mA1 Sound Level at 1m: 100 dB Standards/Approvals: RoHS|EAC|CE Tone Type: Continuous
Previous Article Number
714025
Additional information
Country of origin United Kingdom (GB)
Manufacturer e2s
Gross weight (incl. package) 344 Gram
Dimensions (incl. package) 155 x 139 x 128 MM
Customs number 8531.1000
UNSPSC (v5.03) 46171606
