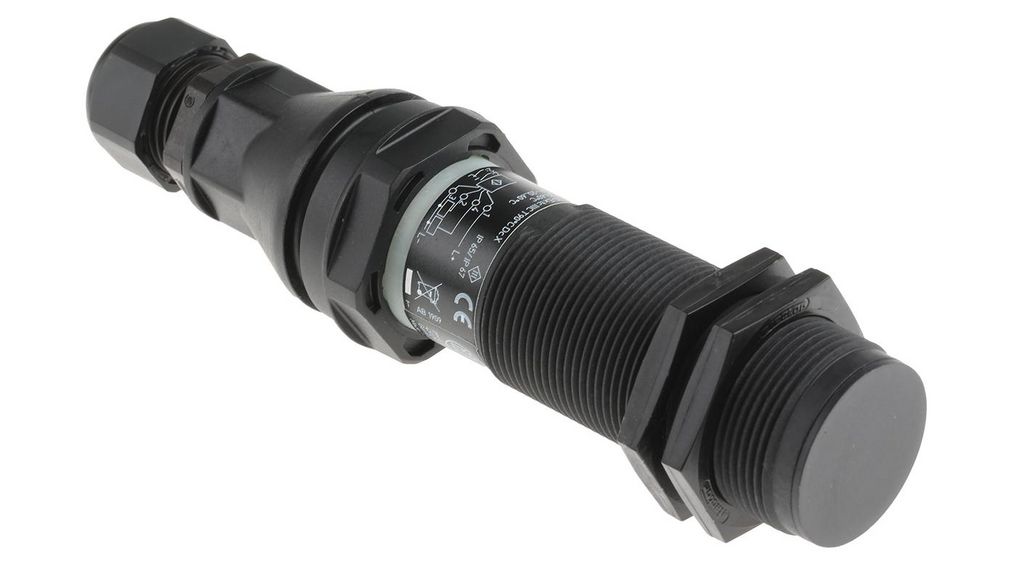

ifm electronic Threaded Barrel Proximity Sensor, M30 x 1.5PNP30 V PNP 10Hz 30V IP65 / IP67KI503A
KI503A - ifm electronic Threaded Barrel Proximity Sensor, M30 x 1.5PNP30 V PNP 10Hz 30V IP65 / IP67
305-22-379
KI503A
Manufacturer:Ifm
New to us
Image is for illustrative purposes only. Please refer to product description.
KI503A - ifm electronic Threaded Barrel Proximity Sensor, M30 x 1.5PNP30 V PNP 10Hz 30V IP65 / IP67
305-22-379
KI503A
Manufacturer:Ifm
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Body Style: Threaded Barrel Hazardous Area Certification: No Housing Material: Polyamide IP Rating: IP65|IP67 Length: 150 mm Maximum DC Voltage: 30 V Maximum Detection: 15 mm Maximum Operating Temperature: 60 °C Maximum Supply Voltage: 30 V Maximum Switching Frequency: 10 Hz Minimum Operating Temperature: -20 °C Mount Type: Non-Flush Output Type: PNP Product Type: Proximity Sensor Shielding: Unshielded Standards/Approvals: No Switching Current: 200 mA Terminal Type: Screw Thread Size: M30 x 1.5
Previous Article Number
714574
Additional information
Country of origin Germany (DE)
Manufacturer Ifm
Gross weight (incl. package) 152 Gram
Dimensions (incl. package) 167 x 66 x 46 MM
Customs number 8536.5019
UNSPSC (v5.03) 41111943
EAN 4021179269865
