ifm electronic Threaded Barrel Proximity Sensor, M18 x 1PNP30 V PNP 300Hz 30V IP67IG5916
IG5916 - ifm electronic Threaded Barrel Proximity Sensor, M18 x 1PNP30 V PNP 300Hz 30V IP67
305-17-846
IG5916
Manufacturer:Ifm
New to us

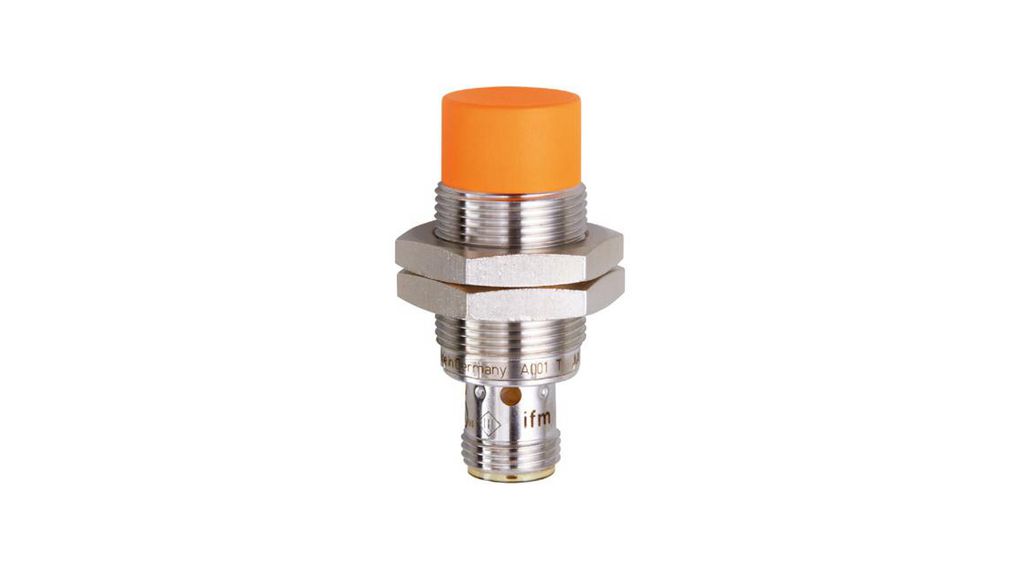

Image is for illustrative purposes only. Please refer to product description.
IG5916 - ifm electronic Threaded Barrel Proximity Sensor, M18 x 1PNP30 V PNP 300Hz 30V IP67
305-17-846
IG5916
Manufacturer:Ifm
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Body Style: Threaded Barrel Housing Material: Brass White Bronze Coated IP Rating: IP67 Length: 45 mm Maximum DC Voltage: 30 V Maximum Detection: 8 mm Maximum Operating Temperature: 80 °C Maximum Supply Voltage: 30 V Maximum Switching Frequency: 300 Hz Minimum Operating Temperature: -25 °C Mount Type: Non-Flush Output Type: PNP Product Type: Proximity Sensor Series: IG5 Shielding: Unshielded Standards/Approvals: EN 55011 Class B|EN 60947-5-2 Switching Current: 200 mA Terminal Type: M12 x 1 Plug Thread Size: M18 x 1
Previous Article Number
735886
Additional information
Country of origin Germany (DE)
Manufacturer Ifm
Gross weight (incl. package) 39.8 Gram
Dimensions (incl. package) 280 x 75 x 40 MM
Customs number 8536.5000
UNSPSC (v5.03) 41111943
EAN 4021179115360
