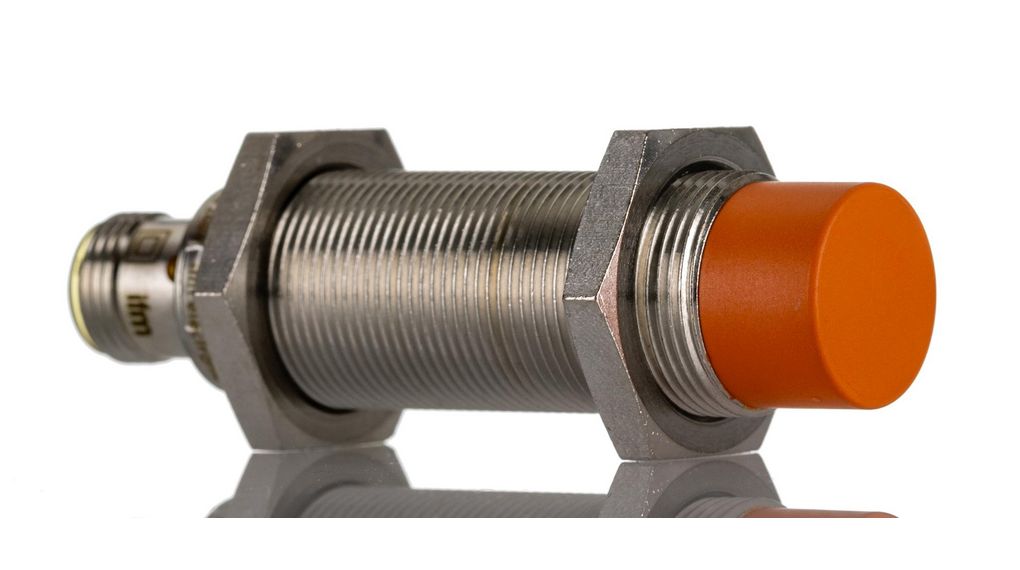

ifm electronic Threaded Barrel Proximity Sensor, M18 x 1PNP/NPN36 V PNP-NPN 250Hz 36V IP67IG5954
IG5954 - ifm electronic Threaded Barrel Proximity Sensor, M18 x 1PNP/NPN36 V PNP-NPN 250Hz 36V IP67
305-22-374
IG5954
Manufacturer:Ifm
New to us
Image is for illustrative purposes only. Please refer to product description.
IG5954 - ifm electronic Threaded Barrel Proximity Sensor, M18 x 1PNP/NPN36 V PNP-NPN 250Hz 36V IP67
305-22-374
IG5954
Manufacturer:Ifm
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Body Style: Threaded Barrel Housing Material: Bronze Plated Brass IP Rating: IP67 Length: 72 mm Materials Detected: Metal Maximum DC Voltage: 36 V Maximum Detection: 12 mm Maximum Operating Temperature: 70 °C Maximum Supply Voltage: 36 V Maximum Switching Frequency: 250 Hz Minimum Operating Temperature: -25 °C Mount Type: Non-Flush Output Type: PNP/NPN Product Type: Proximity Sensor Shielding: Unshielded Standards/Approvals: EN 55011 Class B|EN 60947-5-2 Switching Current: 100 mA Terminal Type: Screw Thread Size: M18 x 1 Width: 18 mm
Previous Article Number
714570
Additional information
Country of origin Germany (DE)
Manufacturer Ifm
Gross weight (incl. package) 54 Gram
Dimensions (incl. package) 141 x 112 x 20 MM
Customs number 9032.9090
UNSPSC (v5.03) 41111943
EAN 4021179115742
