Huber+Suhner 92_PC24 Series ScrewFemale PC 2.4, 50 Ohm, Straight BodyPCB, Female, Straight92_PC24-S50-0-200/199_NE
92_PC24-S50-0-200/199_NE - Huber+Suhner 92_PC24 Series ScrewFemale PC 2.4, 50 Ohm, Straight BodyPCB, Female, Straight
305-17-270
92_PC24-S50-0-200/199_NE
Manufacturer:Huber+Suhner
New to us

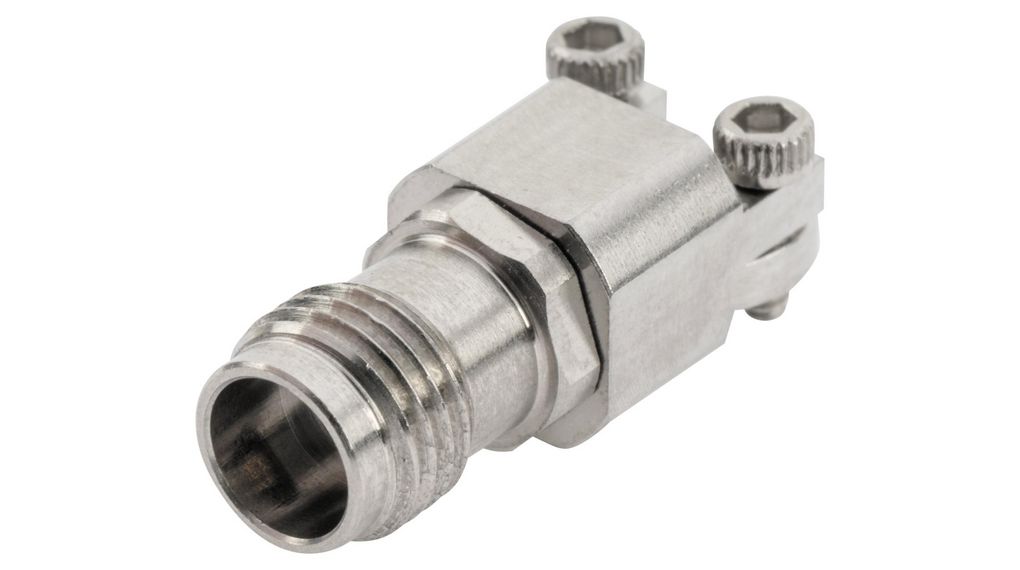

Image is for illustrative purposes only. Please refer to product description.
92_PC24-S50-0-200/199_NE - Huber+Suhner 92_PC24 Series ScrewFemale PC 2.4, 50 Ohm, Straight BodyPCB, Female, Straight
305-17-270
92_PC24-S50-0-200/199_NE
Manufacturer:Huber+Suhner
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Body Plating: Passivated Coaxial Connector Type: PC 2.4 Connector Gender: Female Contact Gender: Female Contact Material: Beryllium Copper Alloy Contact Plating: Gold Plating Impedance: 50 Ohm Maximum Operating Temperature: 165 °C Minimum Operating Temperature: -40 °C Mount Type: Screw Operating Frequency: 67 GHz Orientation: Straight Product Type: SMA Connector Series: 92_PC24 Standards/Approvals: UKCA|RoHS|REACH|IEEE Std 287|CE Termination Type: PCB
Previous Article Number
708496
Additional information
Country of origin Republic of Korea (KR)
Manufacturer Huber+Suhner
Gross weight (incl. package) 6 Gram
Dimensions (incl. package) 55 x 30 x 10 MM
Customs number 8536.6900
UNSPSC (v5.03) 39121402
