Guide Cylinder, 10mm, 800mm/s, 200 ... 1MPa, 60°C, Bore Size 12mm, M5DFM-12-10-P-A-KF
DFM-12-10-P-A-KF - Guide Cylinder, 10mm, 800mm/s, 200 ... 1MPa, 60°C, Bore Size 12mm, M5
301-70-030
DFM-12-10-P-A-KF
1215366
Manufacturer:Festo

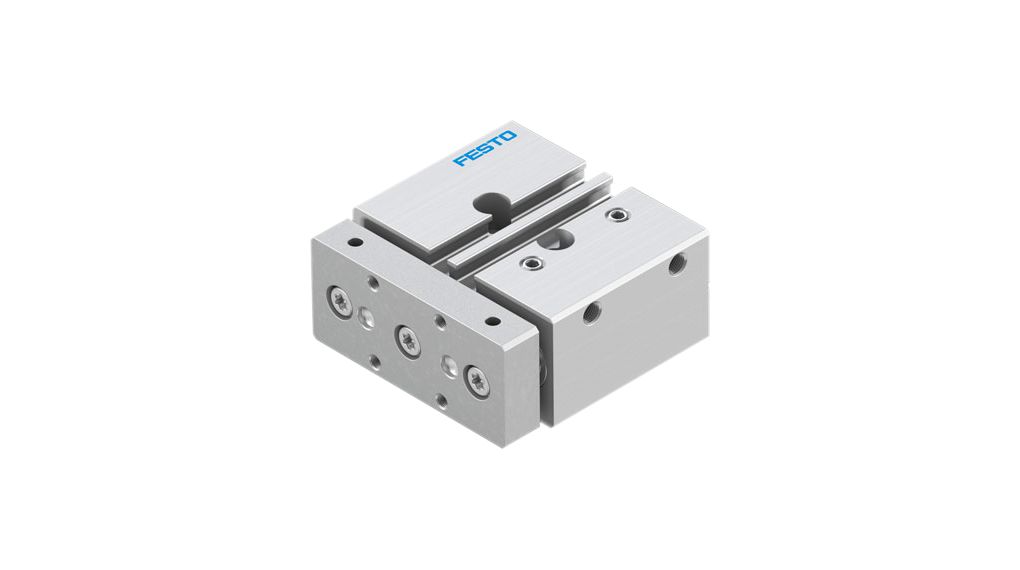

Image is for illustrative purposes only. Please refer to product description.
DFM-12-10-P-A-KF - Guide Cylinder, 10mm, 800mm/s, 200 ... 1MPa, 60°C, Bore Size 12mm, M5
301-70-030
DFM-12-10-P-A-KF
1215366
Manufacturer:Festo
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Family Information
Festo DFM series pneumatic guided cylinders are double acting drive and guide unit in a single housing. Four plain slide bearings on the large diameter guide rods provide high rigidity suitable for high loads. Designed for high load pneumatic applications such as clamping, stopping, material handling and lifting.
- Minimal space requirement
- Minimal assembly time
- Choice of supply ports
- Wide range of mounting options
- Good protection against torsion High rigidity
- Maintenance-free
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Previous Article Number
385023
Additional information
Country of origin Germany (DE)
Manufacturer Festo
Gross weight (incl. package) 316 Gram
Dimensions (incl. package) 61 x 60 x 34 MM
Customs number 8412.3100
UNSPSC (v5.03) 31251503
EAN 4052568139933
