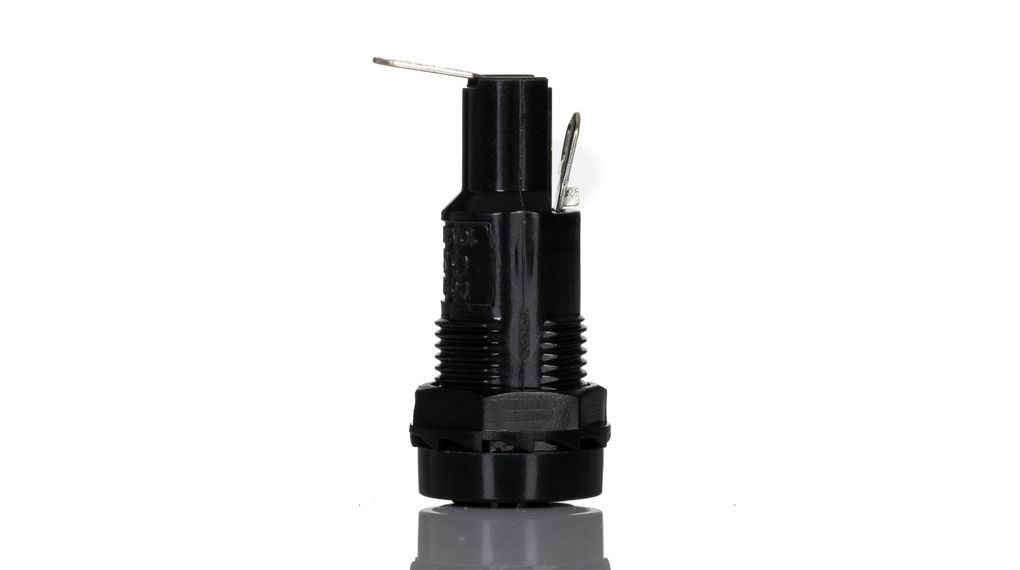

1884630 - Fuse Holder 10A 250V
Image is for illustrative purposes only. Please refer to product description.
1884630 - Fuse Holder 10A 250V
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
RS PRO Panel Mount Fuse Holder The RS PRO manual cap panel mount fuse holder has a compatible fuse length of 20mm and compatible fuse diameter of 5mm. It has a current rating of 10A and voltage rating of 250V. The fuse holder includes mounting washer and solder lugs for wiring. Features and Benefits - Body of Phenolic Moulding Compound - Contact Resistance: 5mohnm(at 1ADC) - Cover of Polybutylene terephthalate - Dielectric Strength: AC 1500V Min (60sec) - Insulating Body of Thermoplastic Material - Insulation Resistance: Min 100Mohm(at 500VDC) - Nickel or tin plated copper alloy Certifications - UL94V-0
