Axial Fan, High Static Pressure DC Ball 40x40x28mm 12V 63m³/h9HVA0412P3J001
9HVA0412P3J001 - Axial Fan, High Static Pressure DC Ball 40x40x28mm 12V 63m³/h
301-87-291
9HVA0412P3J001
Manufacturer:Sanyo Denki
Offer
Image is for illustrative purposes only. Please refer to product description.

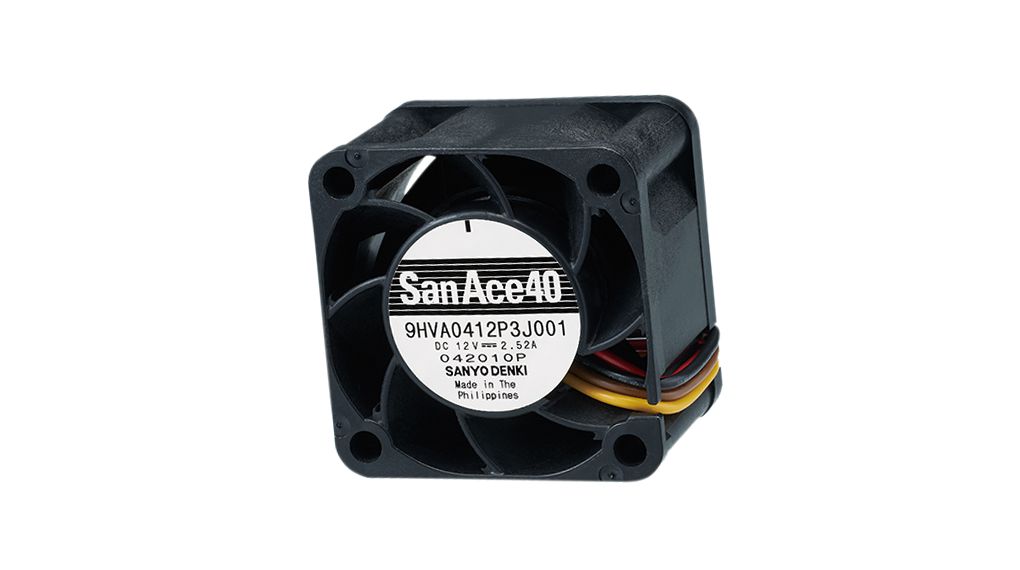

9HVA0412P3J001 - Axial Fan, High Static Pressure DC Ball 40x40x28mm 12V 63m³/h
301-87-291
9HVA0412P3J001
Manufacturer:Sanyo Denki
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Family Information
- With PMW speed control function and pulse sensor
- PWM frequency: 25 kHz
- Locked rotor burnout protection, Reverse polarity protection
- Dielectric strength: 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
- Insulation resistance10 MOhm or more with a 500 VDC megger (between lead wire conductors and frame)
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Previous Article Number
403327
Additional information
Country of origin Philippines (PH)
Manufacturer Sanyo Denki
Gross weight (incl. package) 59 Gram
Dimensions (incl. package) 165 x 115 x 28 MM
Customs number 8414.5992
UNSPSC (v5.03) 40101604
