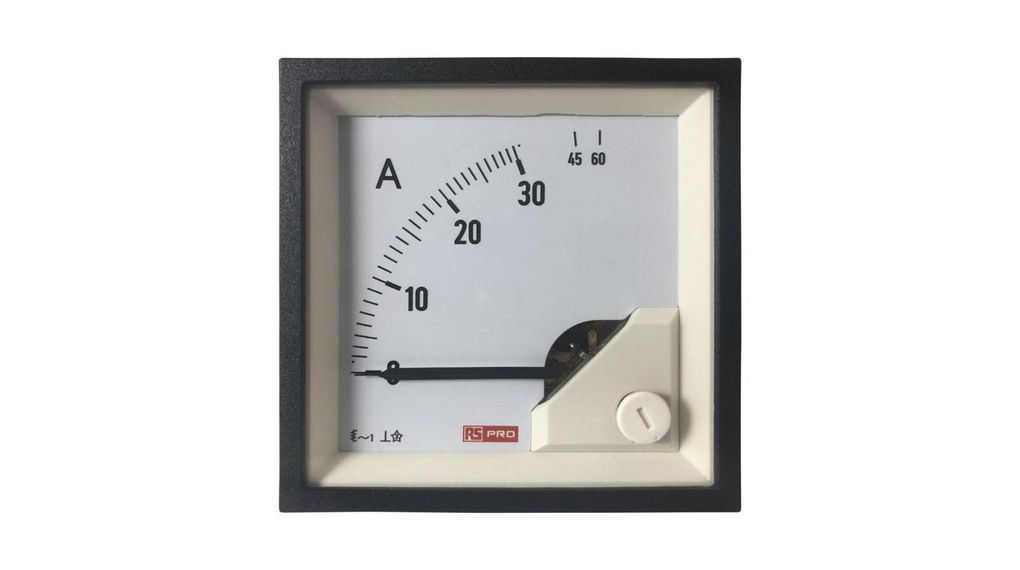

RS PRO AC Analogue Panel Ammeter The RS PRO 68mm x 68mm cut-out AC analogue panel ammeter has a measurement range of 0A to 60A input. The DIN style panel meter comprises of moving iron movements. It indicates true RMS value and is substantially independent of system waveform. The scales are calibrated down to 10% and can have overload scales of X2, X3, X5, or X6 to measure motor inrush current. The meter is housed in a moulded polycarbonate case and is suitable for measurement of AC currents for the frequency range of 15Hz to 400Hz. Features and Benefits - Operating temperature ranges between -10°C and 65°C - Accuracy: 1% - Pointer: Knife-edge type - Pointer deflection: 0° to 90° - Nominal range of use: 100mA to 100A direct connection - Shock resistance: 15g for pulse duration 11 milliseconds - Moulded square case suitable for mounting control/switchgear panels in machinery consoles - Overload: 2 times nominal current (continuous) - Relative humidity: Less than 75% annual average (noncondensing) Certifications - UL 94 V-0 approved - 2014/30/EC (EMC directive) - 2014/35/EC (low voltage directive) - CE certified - IP52 rated - EN 61010 - VDE 0100-410: 2018-10 approved - IEC 529 - IEC 61010 - ISO 20653: 2006-08
